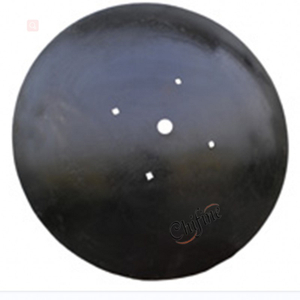

Agricultural Machinery Parts Disc Blade Plain Disc Blade Notched Disc Blade
A harrow disc is a harrow whose cutting edges are a row of concave metal discs, which may be scalloped, set at an oblique angle. It is an agricultural implement that is used to till the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders.
Main manufacturing process:
• Cutting materials
• Heat treatment
• Pressure type
• Quenching
• Tempering
• Baking varnish
Qingdao Chifine Machinery Co.,Ltd is one famous company in China which specialized in various metal casting and machining products with over 20 years experience located in Qingdao China.It covers a comprehensive range of casting and machining part and was widely used in Agriculture machinery, Motor Vehicle, Architecture,Railway ,valve and pump industry ,Engineering,Mechanical Part, Mining Industries ,Marine ,petroleum machinery and so on.
There are six department in our company ,every department help and support each other .
Production Department
QC department
Technical department
Sales department
Financial department
Purchasing department
WHY CHOOSE US
Chifine has accumulated important and valuable experience in design, manufacturing and customer service over these years We will continue to integrate our technical superiority, improve process and quality to increase market share and create more brilliant future.
Professionally managed Casting foundry and metal maching workshop
Mould, casting, machining, surface integrated services
Flexibility for quantities - large / medium / small series - all can be produced.
Well qualified & experienced skilled staff.Rich experience on product development .
Consistent Quality.ISO9001 Certificated
Shorter lead time for mould and sample development.
Professional sales staff with rich experience and good communication skills.Quick responses to inquiries / RFQs.
Vision to grow with the customers & keep long term business relations.
| Blades Model | |||
| 14″×3mm | 355mm×3mm | 24″×6mm | 610mm×6mm |
| 16″×4mm | 406mm×3mm | 26″×5mm | 660mm×5mm |
| 18″×3mm | 460mm×3mm | 26″×6mm | 660mm×6mm |
| 18″×4mm | 460mm×4mm | 28″×6mm | 710mm×6mm |
| 20″×3mm | 510mm×3mm | 26″×7mm | 660mm×7mm |
| 20″×3.5mm | 510mm×3.5mm | 28″×7mm | 710mm×7mm |
| 20″×4mm | 510mm×4mm | 26″×8mm | 660mm×8mm |
| 20″×5mm | 510mm×5mm | 28″×8mm | 710mm×8mm |
| 22″×4mm | 560mm×4mm | 30″×8mm | 760mm×8mm |
| 22″×4.5mm | 560mm×4.5mm | 32″×8mm | 810mm×8mm |
| 22″×5mm | 560mm×5mm | 32″×9mm | 810mm×9mm |
| 22″×6mm | 560mm×6mm | 32″×10 mm | 810mm×10mm |
| 24″×4mm | 610mm×4mm | 36″×10 mm | 910mm×10mm |
| 24″×5mm | 610mm×5mm | 36″×12 mm | 910mm×12mm |
| 1 | Item Name | Tractor Disc Plough for Farm Machine |
| 2 | Material | 65Mn or Boron steel |
| 3 | Hardness | HRC38~44 |
| 4 | Surface Treatment | Painting as the color you need |
| 5 | Outer Diameter | 10"~30" inch |
| 6 | Thickness | 3~12mm |
| 7 | Hole Shape | Squared, Round, Hexagon or based on your requirement |
| 8 | Feature | Long using life and the reasonable price |
| 9 | Advantages | Professional production team,excellent engineer,high quality productions |
| 10 | Use | Widely used for cultivator, farm implements |
| 11 | Certificate | ISO 9001:2008 |
| 12 | Place of Origin | Shandong |
| 13 | Package | Carton and Pallet.It is available to supply colorful package according to your requirement. |
